Product Introduction
6 XFP are compact, hot-swappable, one-slot modules with 6 XFP interface ports for 1+1 Protection. Installation and setup is simple plug-n-play.Insert the module into any powered Fiberroad chassis, insert the XFP transceivers required for the protocol and distance of the application, and then connect to the network.
6XFPs are compact, hot-swappable, one-slot modules with 6 XFP interface ports. Installation and setup is simple plug-n-play.Insert the module into any powered Fiberroad chassis, insert the XFP transceivers required for the protocol and distance of the application, and then connect to the network.
Features
Wide range of applications Media conversion Signal repeating Lambda conversion WDM/OADM
High port density -Six data ports per slot
3R signal regeneration Retransmission Reshaping Retiming
Wide data rate support 8 Gbps/10Gbps Fibre Channel Any 10G protocol (up to 11.3 Gbps) 10G Ethernet LAN or WAN PHY 10G SONET/SDH
Flexible and scalable Add or change optics to adjust data or media rates Maintain single item inventory
Wide range of optical and copper interfaces Standard wavelengths (850 nm, 1310 nm, 1550 nm) CWDM wavelengths DWDM (ITU-T G.694.1-2002)
Support wavelength tunable module
High reliability Dual redundant line side optical interface designed to support 1 + 1 automatic protection switching It supports point 1 + 1 automatic protection switching, switching time <20ms
Support ring automatic protection switching, switching time <20ms
FR8000 chassis compatibility
Fit FR8000-CH01 1-slot powered chassis
Fit FR8000-CH08 8-slot powered chassis
Fit FR8000-CH16 16-slot powered chassis
Performance Parameters
| System parameters | | Technical indicators |
| Data Rate (Gbps) | | FC: 8.5Gbps /10Gbps SONET OC-192, STM-64 (9.953Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) 10G POS |
| Optical interface type | | XFP x6/ SFP+x2+XFPx4 |
| NMS | | TELNET,SNMP,WEB |
| Size | OTU Module | 26.5(W) × 195(H) × 252(D) |
| 1-slot chassis | 482.6(W)x350(D)x43.6(H) |
| 8-slot chassis | 482.6(W)x360(D)x109(H) |
| 16-slot chassis | 482.6(W)x360(D)x261.6(H) |
| Environment | Operating Temperature | -10℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Relative humidity | 5% ~ 95% Non-condensing |

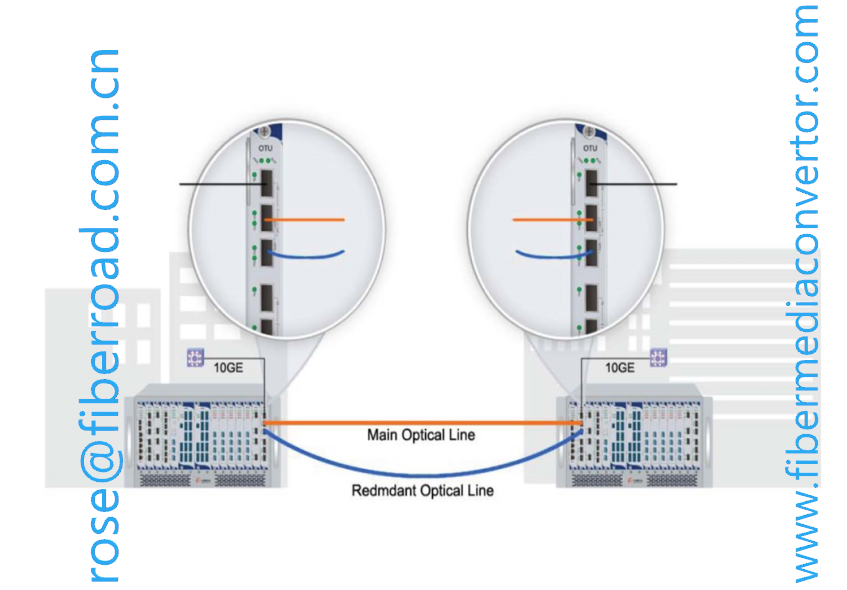

Application
|
|
2*XFP port to 2*XFP 10G Media Converter Module slot Line Card with 1*XFP to 1*XFP 1+1 Proetection Images
|
